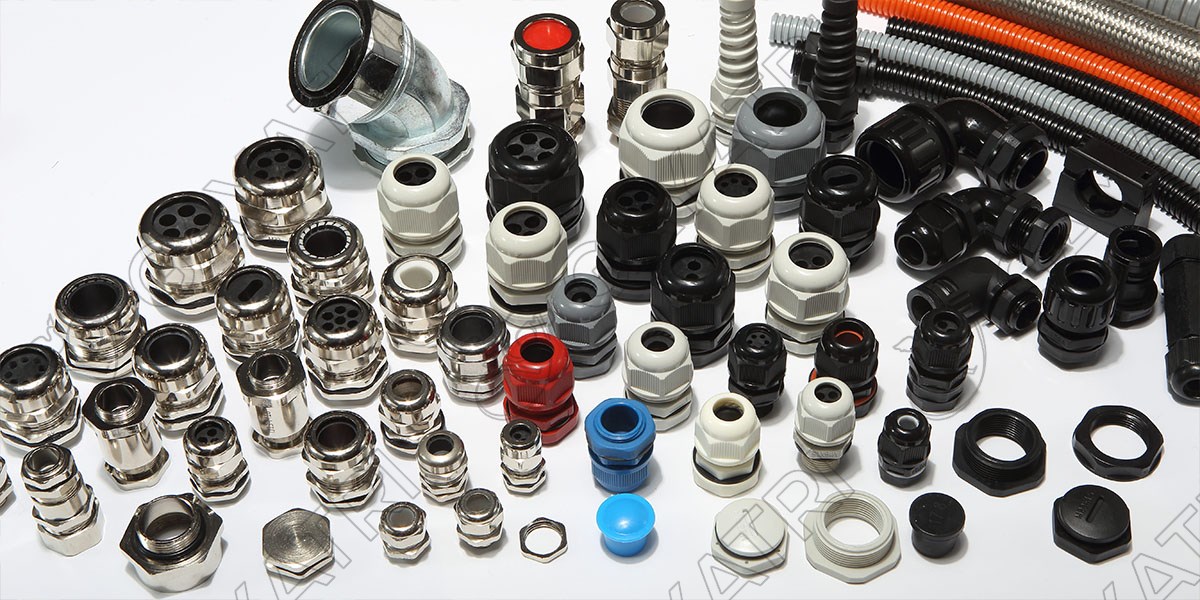

We are Brass Sections and Brass Profile manufacturer with wide range of length, shapes and alloys. These sections and profiles are manufactured in various standards like IS, BS, DIN, etc.

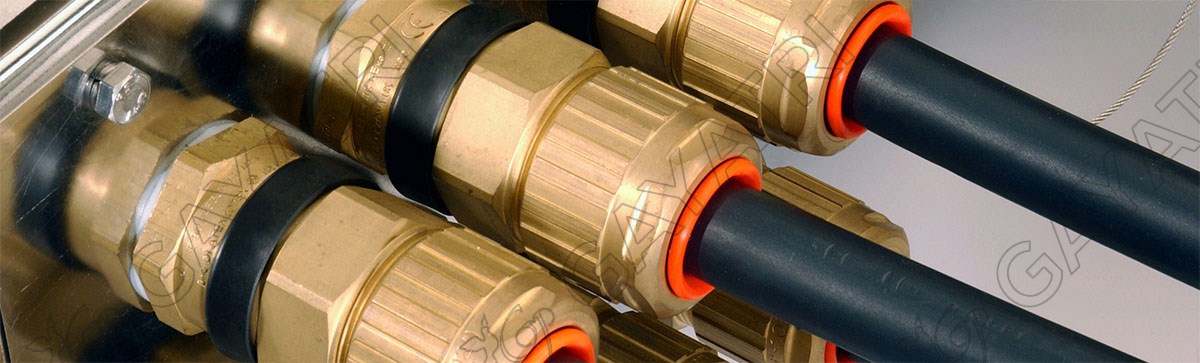

Size : 20 mm to 90 mm
Standard : EN 50262 : 1999
Application : Outdoor or Indoor for use with all types of Unarmoured Cable
Function : Provide Seal on Outer Sheath of the Unarmoured Cable
Material : Brass BS 2874 CZ121 Pb3
Optional Threads : METRIC, NPT, BSP, PG or as specified
Finish : Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp. : Standard seals -20°C to +80°C
Accessories : Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement
Size | Thread Size 'C' | Minimum Length of Thread 'D' |
Cable Range | ||
MM | INCH | MAX 'A' | MAX 'B' | ||
A2 20S | 20 | 3/4 | 15 | 10.80 | 8.80 |
A2 20L | 20 | 3/4 | 15 | 14.70 | 11.40 |
A2 25S | 25 | 1 | 15 | 16.00 | 13.00 |
A2 25L | 25 | 1 | 15 | 20.30 | 17.30 |
A2 32S | 32 | 1.1/4 | 15 | 23.00 | 20.00 |
A2 32L | 32 | 1.1/4 | 15 | 26.20 | 24.20 |
A2 40S | 40 | 1.1/2 | 20 | 29.00 | 26.00 |
A2 40L | 40 | 1.1/2 | 20 | 34.00 | 29.50 |
A2 50S | 50 | 2 | 20 | 41.00 | 33.00 |
A2 50L | 50 | 2 | 20 | 45.00 | 38.00 |
A2 63S | 63 | 2.1/2 | 20 | 51.50 | 44.00 |
A2 63L | 63 | 2.1/2 | 20 | 56.50 | 50.00 |
A2 75S | 75 | 3 | 20 | 63.20 | 56.00 |
A2 75L | 75 | 3 | 20 | 68.50 | 62.00 |
Also available in Kit Packaging and also as per the specification

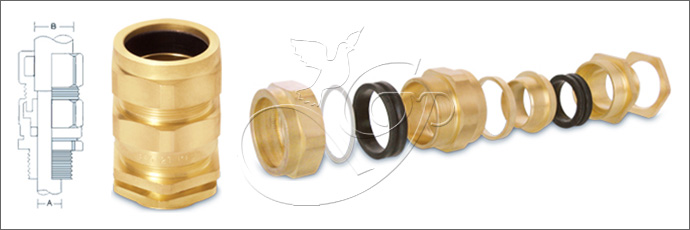

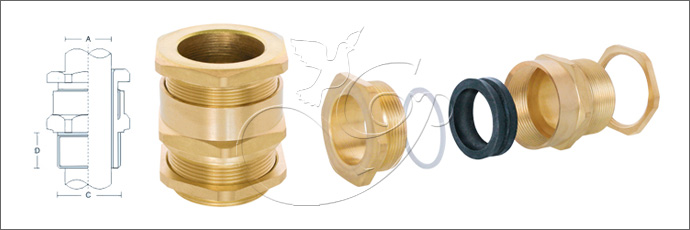

Size : 20 mm to 90 mm S & L
Standard : EN 50262 : 1999
Application : For indoor or outdooruse with all types of SWA Cable
Function : Provide for Environmental Seal in the Cable Outer Sheath,. Also provide mechanical cable retention & electrical continuity.
Material : Brass BS 2874 CZ121 Pb3
Optional Threads : METRIC, NPT, BSP, PG or as specified
Finish : Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp. : Standard seals -20°C to +80°C
Accessories : Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tags, Reducers, Adaptors, etc. as per the requirement
Size | Thread Size 'C' | Minimum Length of Thread 'D' |
Cable Range | ||
MM | INCH | MAX 'A' | MAX 'B' | ||
CW 20S | 20 | 3/4 | 10 | 11.80 | 17.80 |
CW 20L | 20 | 3/4 | 10 | 14.00 | 20.80 |
CW 25S | 25 | 1 | 10 | 18.00 | 24.00 |
CW 25L | 25 | 1 | 10 | 20.30 | 27.40 |
CW 32S | 32 | 1.1/4 | 10 | 24.50 | 31.00 |
CW 32L | 32 | 1.1/4 | 10 | 26.50 | 34.20 |
CW 40S | 40 | 1.1/2 | 13 | 30.40 | 38.50 |
CW 40L | 40 | 1.1/2 | 13 | 33.20 | 41.00 |
CW 50S | 50 | 2 | 13 | 40.00 | 47.00 |
CW 50L | 50 | 2 | 13 | 44.00 | 53.50 |
CW 63S | 63 | 2.1/2 | 14 | 50.00 | 59.00 |
CW 63L | 63 | 2.1/2 | 13.50 | 56.00 | 66.00 |
CW 75S | 75 | 3 | 15 | 63.50 | 73.00 |
CW 75L | 75 | 3 | 15 | 69.00 | 79.00 |
Size | Size | Minimum Length of Thread 'D' |
Cable Range | ||
MM | THREAD NPT | MAX 'A' | MAX 'B' | ||
CWNPT 20S | 20 | 1/2" | 10 | 11.80 | 17.80 |
CWNPT 20L | 20 | 1/2" | 10 | 14.00 | 20.80 |
CWNPT 25S | 25 | 3/4" | 10 | 18.00 | 24.00 |
CWNPT 25L | 25 | 3/4" | 10 | 20.30 | 27.40 |
CWNPT 32S | 32 | 1" | 10 | 24.50 | 31.00 |
CWNPT 32L | 32 | 1" | 10 | 26.50 | 34.20 |
CWNPT 40S | 40 | 1.1/4" | 13 | 30.40 | 38.50 |
CWNPT 40L | 40 | 1.1/4" | 13 | 33.20 | 41.00 |
CWNPT 50S | 50 | 1.1/2" | 13 | 40.00 | 47.00 |
CWNPT 50L | 50 | 1.1/2" | 13 | 44.00 | 53.50 |
CWNPT 63S | 63 | 2" | 14 | 50.00 | 59.00 |
CWNPT 63L | 63 | 2" | 13.50 | 56.00 | 66.00 |
CWNPT 75S | 75 | 2.1/2" | 15 | 63.50 | 73.00 |
CWNPT 75L | 75 | 2.1/2" | 15 | 69.00 | 79.00 |
Also available in Kit Packaging and also as per the specification
Size : 20 mm to 90 mm S & L
Standard : EN 50262 : 1999
Application : For indoor or outdoor use with all types of SWA Cable
Function : Provide for Environmental Seal in the Cable Outer sheath. Also, provide mechanical cable retention & electrical continuity
Material : Brass BS 2874 CZ121 Pb3
Optional Threads : METRIC, NPT, BSP, PG or as specified
Finish : Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp. : Standard seals -20°C to +80°C
Accessories : Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement
Size | Thread | Length | A | B | A/F | A/C |
20S | M20 | 15.00 | 12.00 | 16.00 | 22.20 | 24.20 |
20L | M20 | 15.00 | 14.00 | 20.50 | 27.00 | 29.50 |
20/16 | M20 | 15.00 | 9.00 | 14.00 | 22.20 | 24.20 |
25S | M25 | 15.00 | 18.50 | 24.50 | 33.50 | 37.50 |
25L | M25 | 15.00 | 20.50 | 27.50 | 36.00 | 40.00 |
32S | M32 | 10.40 | 24.30 | 34.00 | 43.00 | 48.50 |
32L | M32 | 15.00 | 26.27 | 34.20 | 43.50 | 48.50 |
40S | M40 | 15.00 | 29.50 | 41.50 | 52.00 | 58.00 |
40L | M40 | 15.00 | 33.00 | 41.50 | 52.00 | 58.00 |
50S | M50 | 15.00 | 38.50 | 47.00 | 59.00 | 65.50 |
50L | M50 | 15.00 | 44.30 | 53.20 | 64.20 | 71.50 |
63S | M63 | 20.00 | 50.20 | 62.50 | 73.50 | 81.50 |
63L | M63 | 20.00 | 56.20 | 65.50 | 79.50 | 89.00 |
75S | M75 | 20.00 | 62.00 | 74.00 | 87.00 | 97.00 |
75L | M75 | 20.00 | 68.00 | 78.20 | 97.00 | 108.00 |
90L | M90 | 18.50 | 80.00 | 91.00 | 103.50 | 114.50 |
Also available in Kit Packaging and also as per the specification
We can manufacture up to M90 with clamping range from 60 to 75 mm. Design and other specifications can be changed as per the customer's requirements.

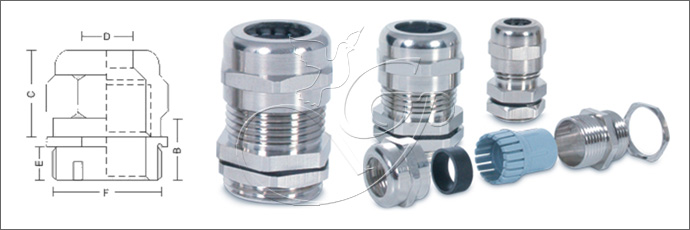

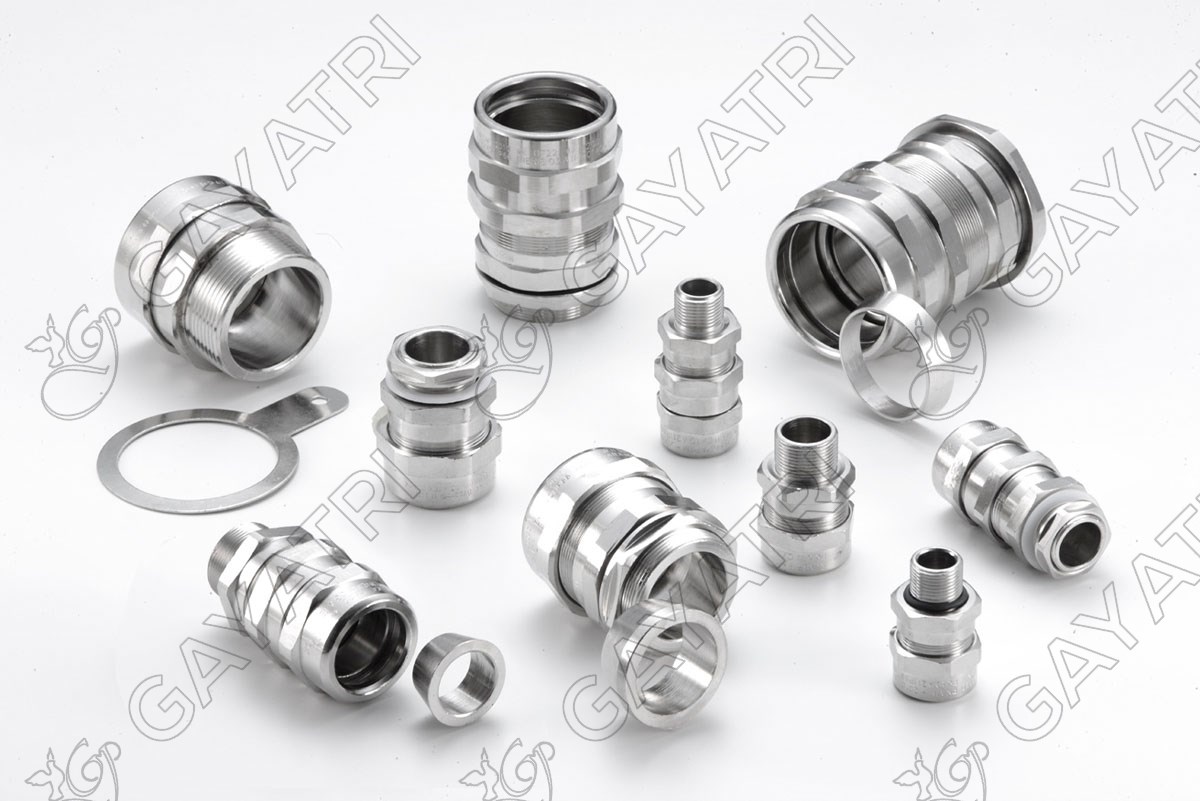

Technical Information | Material |
Body with Lock Nuts | Nickel Plated Brass |
Insert | Polyamide - 6 |
Sealing Ring | Neoprene |
O - Ring | Perbunan |
With Vibration Lock and Strain Relief Protection Class IP 68 - 5 Bar
Temperature Range: -300°C to +900°C
Size | Clamping Range | Thread Length (in mm) |
PG-7 | 2-6.50 | 6.00 |
PG-9 | 3-8.00 | 6.00 |
PG-11 | 4-10.00 | 6.00 |
PG-13.5 | 5-12.00 | 8.00 |
PG-16 | 8-14.00 | 8.00 |
PG-21 | 11-18.00 | 8.00 |
PG-29 | 16-25.00 | 9.00 |
PG-36 | 20-30.00 | 9.00 |
PG-42 | 28-38.00 | 12.00 |
PG-48 | 34-44.00 | 12.00 |
M12 | 2-6.50 | 6.00 |
M16 | 3-8.00 | 6.00 |
M20 | 5-12.00 | 8.00 |
M25 | 11-18.00 | 8.00 |
M32 | 12-21.00 | 8.00 |
M40 | 18-27.00 | 9.00 |
M50 | 27-33.00 | 9.00 |
M63 | 34-48.00 | 12.00 |
Weather Proof Enclosures
Controlling & Liquid Measuring Instrument
Control Panels
Machineries
Limit Switches
Medical Equipments
Multi Pin Connectors
Electric Motors

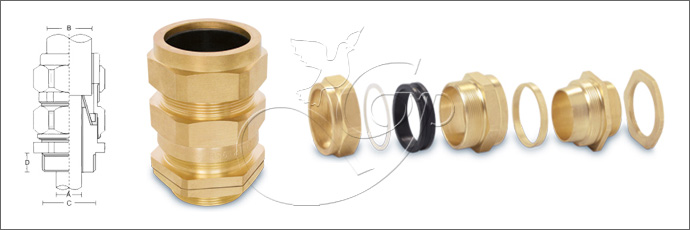

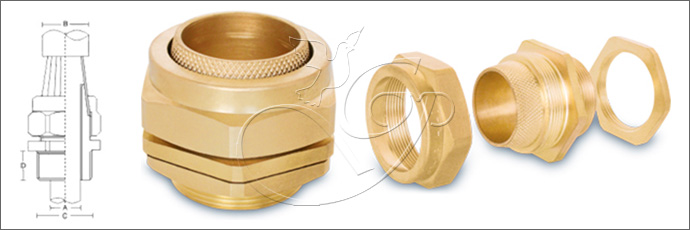

Size : 20 mm to 90 mm
Standard : BS 6121
Application : Dry Indoor, for use with all types of SWA Cable
Function : Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire.
Material : Brass BS 2874 CZ121 Pb3
Optional Threads : METRIC, NPT, BSP, PG or as specified
Finish : Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp. : -80°C to +300°C
Accessories : Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement
Size | Thread Size 'C' | Minimum Length of Thread 'D' |
Cable Range | ||
MM | INCH | MAX 'A' | MAX 'B' | ||
BW 20S | 20 | 3/4 | 10 | 13.00 | 15.50 |
BW 20L | 20 | 3/4 | 10 | 14.00 | 18.50 |
BW 25L | 25 | 1 | 10 | 20.50 | 26.00 |
BW 32L | 32 | 1.1/4 | 10 | 27.00 | 33.90 |
BW 40L | 40 | 1.1/2 | 15 | 33.00 | 41.50 |
BW 50S | 50 | 2 | 15 | 38.50 | 47.00 |
BW 50L | 50 | 2 | 15 | 44.00 | 52.00 |
BW 63S | 63 | 2.1/2 | 15 | 51.00 | 59.20 |
BW 63L | 63 | 2.1/2 | 15 | 56.50 | 65.50 |
BW 75S | 75 | 3 | 15 | 63.00 | 74.00 |
BW 75L | 75 | 3 | 15 | 68.50 | 79.50 |
BW 90L | 90 | 3.1/2 | 20 | 80.50 | 91.00 |
Also available in Kit Packaging and also as per the specification.
Size : 20 mm to 90 mm S & L
Standard : BS 6121
Application : Dry Indoor, for use with all types of SWA Cable
Function : Provide mechanical Cable Retention & Electrical Wire continuity via Armoured Wire.
Material : Brass BS 2874 CZ121 Pb3
Optional Threads : METRIC, NPT, BSP, PG or as specified
Finish : Brass Finish, Nickel Finish, Chrome Finish or as specified
Operating Temp. : -80°C to +300°C
Accessories : Matching Accessories available like PVC Shrouds, Lock Nuts, Earth Tag, Reducers, Adaptors, etc. as per the requirement
Size | Thread | Length | A | B | A/F | A/C |
20S | M20 | 10.00 | 13.00 | 18.00 | 23.50 | 26.00 |
20L | M20 | 10.00 | 14.00 | 21.00 | 25.00 | 28.00 |
25S | M25 | 10.00 | 18.00 | 24.00 | 31.00 | 35.50 |
25L | M25 | 10.00 | 20.50 | 27.00 | 33.00 | 37.00 |
32S | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
32L | M32 | 10.00 | 27.00 | 33.50 | 40.50 | 45.50 |
40S | M40 | 13.00 | 31.50 | 39.50 | 45.50 | 50.50 |
40L | M40 | 13.00 | 33.00 | 41.50 | 49.00 | 55.00 |
50S | M50 | 13.00 | 39.50 | 48.50 | 56.50 | 63.50 |
50L | M50 | 13.00 | 44.50 | 54.50 | 62.50 | 70.50 |
63S | M63 | 14.00 | 50.20 | 59.20 | 68.80 | 77.00 |
63L | M63 | 13.50 | 56.50 | 65.50 | 76.00 | 86.00 |
75S | M75 | 15.00 | 63.50 | 72.00 | 84.00 | 94.50 |
75L | M75 | 15.00 | 69.50 | 78.50 | 90.00 | 101.00 |
90S | M90 | 20.00 | 76.00 | 85.00 | 100.00 | 111.20 |
90L | M90 | 18.00 | 78.40 | 90.50 | 103.00 | 115.00 |
Also available in Kit Packaging and also as per the specification.

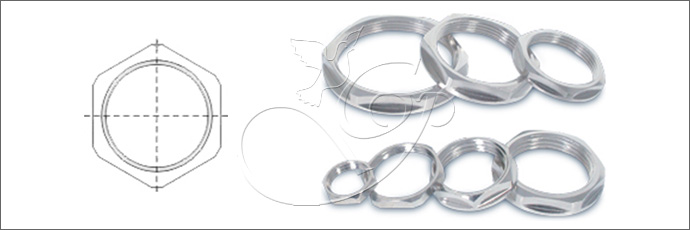

Application : Brass lock nuts re traditional components used in fastening glands to the gland plate & as they are identical material to the gland, corrosion effects are minimal.
Function : Standard with ISO metric thread. To secure only brass cable glands to a gland plate.
EMC : With ISO metric thread with cutting edges to cut through paint layers or powder coatings, for optimum contact.
Material : Brass BS 2874 CZ121 Pb3 Steel, Galvanized Aluminium Alloy (BS 1476)
Thread : ET NPT BSP BSPT PG
Plating : Chrome (CP) Nickel (NP) Tin (TP)

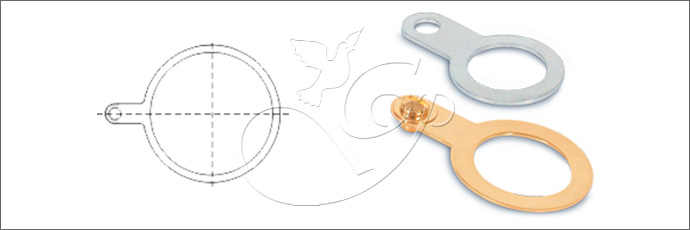

Application : Installed between the gland entry & equipment, provides an earth bond connection
Function : Produces an earth bond connection for electrical continuity
Material : Brass BS 2870 CZ123 lead
Type : With Brass Screws & Washers, Plain Hole
Plating : Nickel (NP) Chrome (CP) Zinc (ZP) Tin (TP)
Material : Brass
Shape : Available in many shapes & thickness in all sizes, can be coated or plated to customers specification as mentioned.

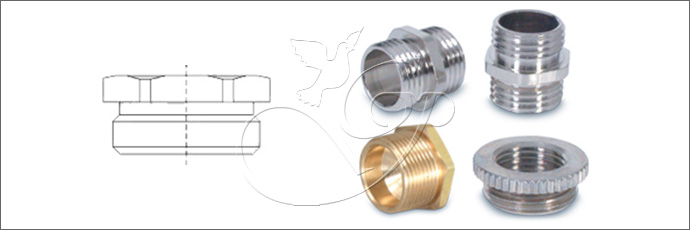

Application : Reducer allows a PG threaded gland to be terminated in enclosures with different entry thread form (ET NPT BSP BSPT)
Function : Reduce the entry thread diameter of enclosures
Material : Brass BS 2874 CZ121 Pb3
Finish : Electro Nickel Plated
Thread : Metric (ISO) ET NPT BSP BSPT
Plating : Chrome (CP) Zinc (ZP) Tin (TP)
Material : Brass Casting BS 2874 Aluminium Alloy & Galvanized Steel
Application : Stop Plug may be used to close thread entries or means of sealing & stopping unused thread entries in flame proof enclosures
Ingress Protection : IP66 (with Nickel Thread Seal) IP368 (3 bar-with Nitrite 'O' Rings)
Options Thread : ET NPT BSP BSPT & PG

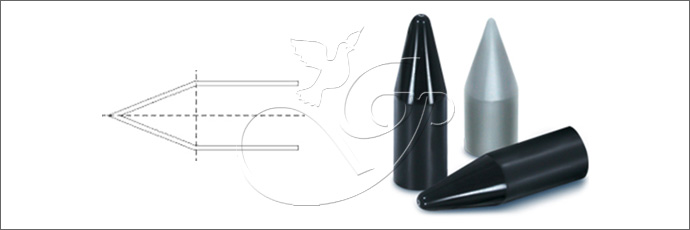

Application : Push on shrouds which are used to minimize the risk of dirt or foreign substances gathering on the Cable Gland Body, and/or point of cable to a gland interface.
Function : For all types of gland applications to provide additional protection & enhances the IP rating of the gland termination.
Material : PVC DIP moulded (Black)
Operating Temp. : PVC DIP moulded -20°C to +100°C
Injection moulded -20°C to +80°C

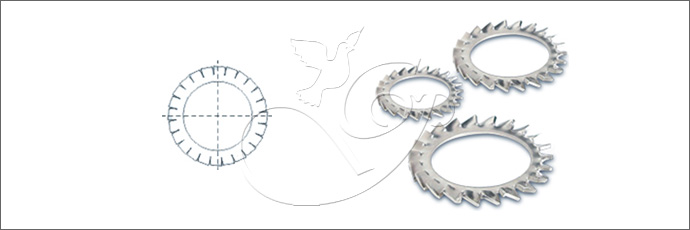

Application : The serrated lock washer with external teeth for cable glands
Material : Available in Brass & Stainless Steel & Steel
Size : From M 20 to M 63
Can be developed as per the drawing also

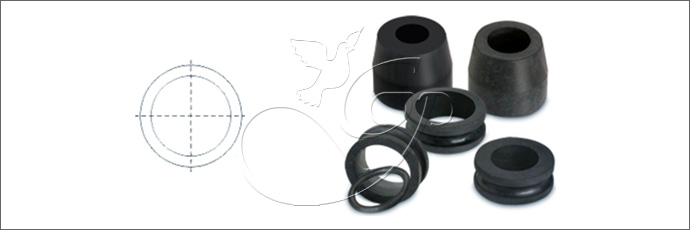

Application : To maintain the IP rating between equipment & cable glands it may be necessary to fit an entry thread sealing washer at the gland entry interface.
Material : Nitrite Rubber & EPDM
Options Material : PVC (Black) Silicon (Orange) Polyamide or Nylon (White) Red Fibre.
Seals available for both external of & internal use.
We manufacture other types of Accessories also and according to specifications, drawing and samples. Other Accessories like Cable Ties, Reducers, Enlargers, Adaptors, Converters, and Stopping Plugs.

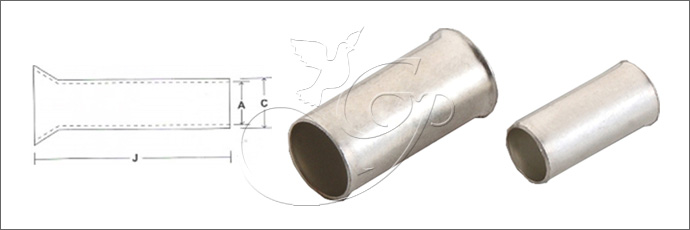

Material : E-Copper-BS : 1977
Surface : Tin Plated
CABLE mm2 | A | C | J |
1 .5 | 1.8 | 3.7 | 15 |
22 | |||
2.5 | 2.4 | 4.0 | 15 |
22 | |||
4 | 3.1 | 4.8 | 15 |
25 | |||
15 | |||
6 | 3.8 | 5.5 | 22 |
25 | |||
20 | |||
10 | 4.5 | 6.2 | 22 |
30 | |||
16 | 5.4 | 7.1 | 20 |
35 | |||
25 | 6.8 |
8.8 |
32 |
40 | |||
47 | |||
35 | 8.2 | 10.6 | 36 |
45 | |||
50 | 9.5 |
12.4 |
40 |
47 | |||
50 | |||
40 | |||
70 | 11.2 | 14.7 | 45 |
50 | |||
45 | |||
95 | 13.5 | 17.4 | 50 |
60 | |||
120 | 15.0 | 19.4 | 45 |
65 | |||
150 | 16.5 | 21.2 | 55 |
65 | |||
185 | 18.5 | 23.5 | 65 |
75 | |||
240 | 21.0 | 26.5 | 80 |
85 | |||
89 | |||
300 | 23.5 | 30.0 | 85 |
90 | |||
400 | 26.8 | 34.8 | 90 |
100 | |||
500 | 30.0 | 39.0 | 100 |
110 | |||
630 | 35.0 | 45.0 | 110 |
120 | |||
800 | 39.0 | 50.6 | 150 |
1000 | 43.0 | 56.2 | 170 |

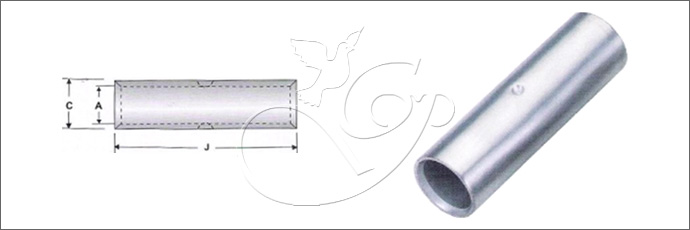

Material : E-Copper
Surface : Tin Plated
CABLE MM2 | A | C | J |
0.5 | 1.0-1.1 | 1.4-1.5 | 6 |
0.75 | 1.4-1.5 | 1.8-1.9 | 6 |
1.0 | 1.6-1.7 | 2.0-2.1 | 6 |
1.6-1.7 | 2.0-2.1 | 10 | |
1.5 | 1.8-1.9 | 2.2-2.3 | 7 |
1.8-1.9 | 2.2-2.3 | 10 | |
2.5 | 2.3-2.4 | 2.7-2.8 ' | 7 |
2.3-2.4 | 2.7-2.8 | 12 | |
4.0 | 2.8-2.9 | 3.2-3.3 | 9 |
2.8-2.9 | 3.2-3.3 | 12 | |
6.0 | 3.7-3.8 | 4.1-4.2 | 10 |
3.7-3.8 | 4.1-4.2 | 12 | |
3.7-3.8 | 4.1-4.2 | 15 | |
10 | 4.6-4.7 | 5.0-5.1 | 12 |
4.6-4.7 | 5.0-5.1 | 15 | |
4.6-4.7 | 5.0-5.1 | 18 | |
16 | 5.9-6.0 | 6.3-6.4 | 12 |
5.9-6.0 | 6.3-6.4 | 15 | |
5.9-6.0 | 6.3-6.4 | 18 |
